A Comparison of Packages to Generate Codebooks in R

⚡️ R-Ladies NYC Lightning Talk ⚡️

Crystal Lewis

Documentation

Whether in academia or industry, it is common to share data with collaborators. And it is important that along with your data, you share some form of documentation that allows your collaborators to use and understand your data.

Codebooks

One type of documentation is a codebook. It is often used to document survey instruments. It describes the contents, structure, and layout of a data file. And it enables the user to quickly ascertain some of the details about a dataset without ever opening the file.

Criteria

✅ Compatible with class haven labelled data

✅ Exportable to txt, Word or PDF format

✅ Produces this variable level information

• Variable name
• Variable label
• Variable type
• Code values
• Code labels
• Missing value codes
• Missing value labels

• Total valid N
• Total missing N
• N per value
• % per value
• N per missing value
• % per value
• Range for continuous
• Mean for continuous

• So I started searching for R packages that produce codebooks so I did not have to make these by hand. I initially found and reviewed 10 different packages and I narrowed this presentation down to 4 based on 3 criteria
• I work with a lot of academics who use SPSS and Stata and it is important to me that the package integrates well with data that has embedded metadata (like embedded variable and value labels).
• I wanted the codebook to be human readable
• These are 15 summary statistics I think are important for getting a holistic picture of what is going on in your data.

Example Data

Pet Ownership and Attachment Survey

participant_id	participant_age	pet_type	pet_1	pet_2	pet_3
10	12	1	2	1	1
22	14	2	2	2	-99
13	15	1	4	4	1
11	13	1	2	1	1

• pet_1: Within your family, your pet likes you best
• pet_2: You talk to your pet as a friend
• pet_3: You buy presents for your pet

(1 = almost never, 2 = sometimes, 3 = often, 4 = almost always, -99 = missing response)

Before we review the packages, I wanted to introduce some example data I used to test out our codebook packages. These are made up responses to a few survey items that I found online about pet ownership and attachment and I thought they were fun questions to work with. We have 3 questions about pet ownership. And they all have this response option range of….

Metadata

We can see here that our data has some embedded metadata. Our three main survey items are all class haven labelled and you can see the actual question wording is embedded as variable labels, and the response options are embedded as value labels. We also have some user-defined missing values (a value of -99)

Review of 4 packages

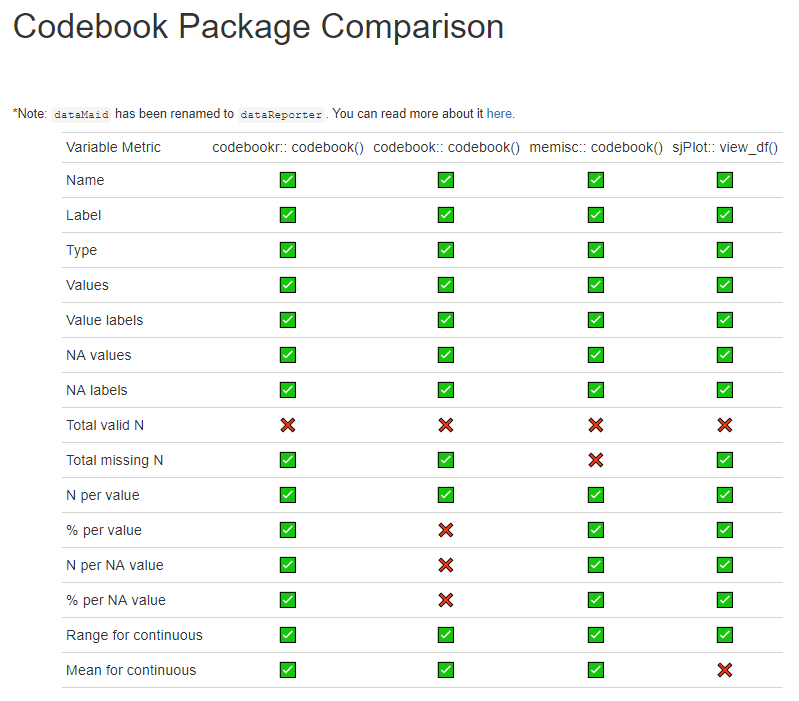

This table gives you a quick overview of what statistics can be exported by each package. But we are going to go through each package one by one now. You can review samples of the code and output from each of these packages in my github repo linked in the footer of these slides as well

codebookr::codebook()

study_codebook <- codebookr::codebook(survey,
                    title = "Pet Relationship Study",
                    subtitle = "Various Authors",
                    description = "This study was funded by
                    the Pet Society. Here is a basic
                    description of our study, our methods,
                    our sample, and protocols.")


print(study_codebook, "codebookr.docx")

• The codebookr has one function that allows you to create a codebook, and that function is “codebook”
• The codebook function creates an rdocx object using the flextable and officer packages under the hood which you can then print to a word document using the print function

codebookr::codebook()

• Prints to Word Document
• Works well with haven labelled data
• Options to add additional variable attributes
• Prints almost all summary statistics
• Can add overall project metadata

• Which makes it easy to manipulate after you export in case there are additional pieces of information you want to add
• It works really well with haven labelled data and recognized all of my embedded metadata
• There are options to add variable attributes such as labels if your data does not come in with metadata added already or you can add additional metadata such as variable skip patterns
• It provided all of the summary statistics I was looking for
• The function has arguments to add project metadata such as a title, author and project description

codebook::codebook()

Creates the pre-filled .Rmd document

codebook::new_codebook_rmd()

Creates the codebook

codebook::codebook(survey)

The new_codebook_rmd function creates a pre-populated .rmd file for you to work in (this image here is what the rmd file looks like)

And then within that rmd there are a few different functions you can use to build your codebook but ultimately the codebook function is the one that creates your codebook

You can then render the .Rmd file to get your full codebook

codebook::codebook()

• Prints to HTML, Word, PDF and other formats
• Works fairly well with haven labelled data
• Options to add additional variable attributes
• Prints some of the summary statistics (not all)
• Provides additional statistics such as scale reliability estimates

• …
• The only thing I struggled with is getting the function to recognize haven labelled user defined missing values
• There are options to add variable attributes if your data does not come in with metadata added already
• It provides most of the summary statistics I was looking for. It was just missing a few.
• This package does however provide some additional statistics that may be beneficial to some people such as scale reliability estimates.

memisc::codebook()

study_codebook <- memisc::codebook(survey)


memisc::Write(study_codebook, file =
                here::here("code","my_memisc_codebook.txt"))

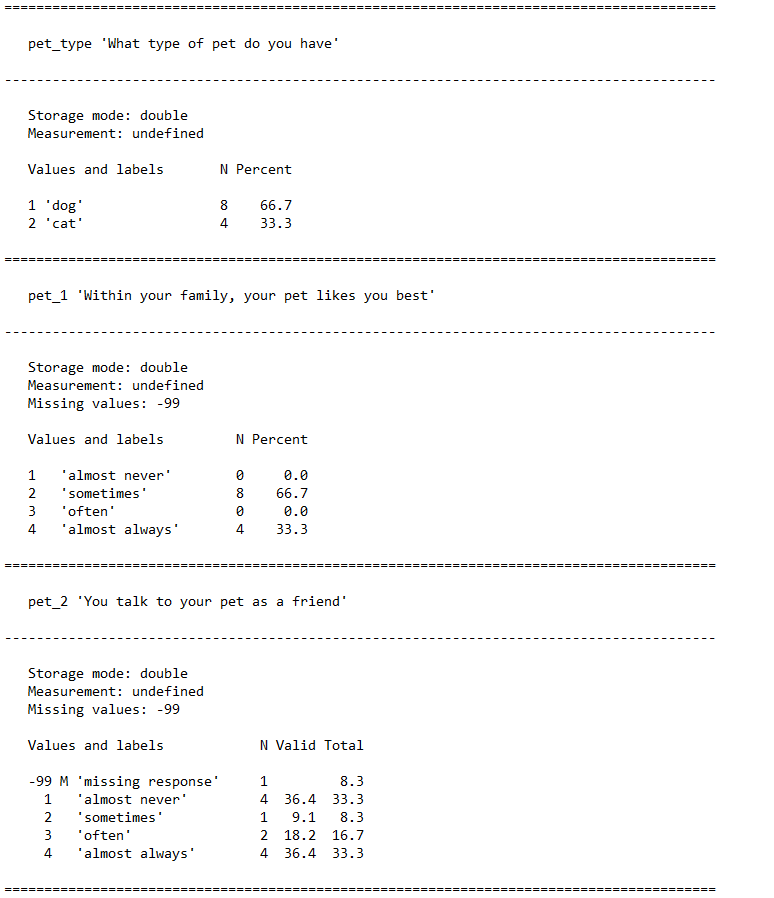

• In this package the codebook function creates a codebook object which you can then write out to a text file

memisc::codebook()

• Prints to txt file
• Works well with haven labelled data
• Options to add additional variable attributes
• Prints most of the summary statistics (not all)
• Provides some additional summary statistics for continuous variables

• I like the simplicity of this package. It prints a very simple but clear text file
• It works really well with haven labelled data and recognized all of my embedded metadata
• There are options to add variable attributes if your data does not come in with metadata added
• It provided almost all of the summary statistics, just missing a few.
• Provides additional statistics such as skewness and kurtosis

sjPlot::view_df()

sjPlot::view_df(survey,
                show.type = TRUE,
                show.frq = TRUE,
                show.prc = TRUE,
                show.na = TRUE,
                show.string.values = TRUE,
                file = here::here("code", "my_sjplot_codebook.html"))

The view_df function creates our codebook

There are several arguments for this function but I included the ones that got me closest to the statistics that I was looking for.

sjPlot::view_df()

• Prints to html file

• Works well with haven labelled data

• Prints most of the summary statistics (not all)

• There are several arguments included to control your level of detail

• This function only prints to an html file which might be great for some purposes and less great for others.
• It works well with haven labelled, it recognizes all of my embedded metadata
• It includes almost all of the summary statistics I was looking for, just missing a few.
• There are several argument options that you can include to control the level of detail you want to show in your codebook which is nice

A review of 10 packages

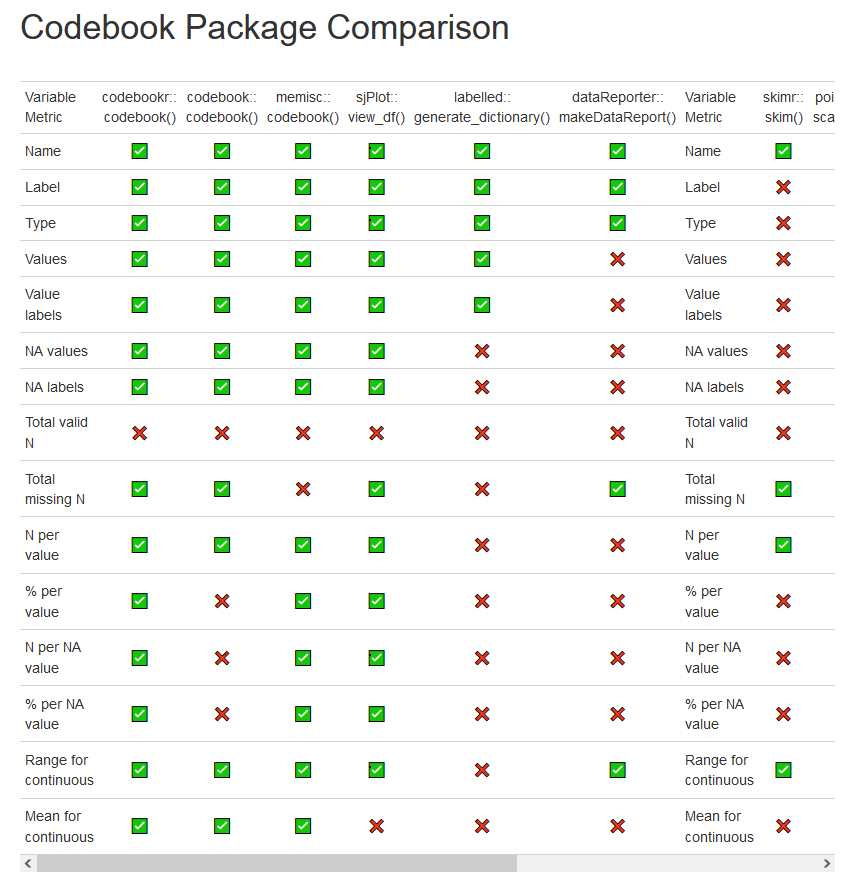

You can see a table of all 10 packages I reviewed on GitHub

Like I mentioned, I initially reviewed 10 packages but narrowed down to the 4 I showed you today because a) they either didn’t work well with haven labelled data or b) they didn’t meet enough of the criteria I was looking for. But if you are interested, you can review a table of all the packages I tried in my GitHub repo here
